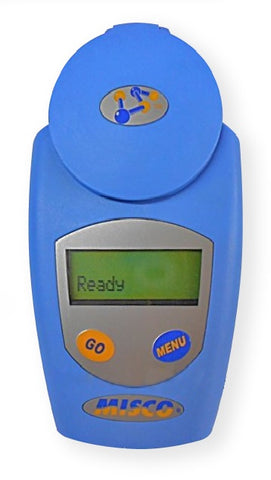

MISCO PA201x-118 Digital Refractometer Measures Battery Acid (H2SO4) Sulfuric/Sulphuric Acid in Specific Gravity

---



SPECS:

Battery Acid: Sulfuric Acid in Specific Gravity:
Range: 1.000-1.501 Specific Gravity
Divisions: 0.001 Specific Gravity
Accuracy: +/-0.001 Specific Gravity
Automatic Temperature Compensation Range (Air Temperature Range): 0.0-50.0°C

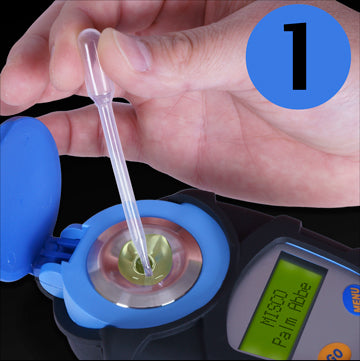

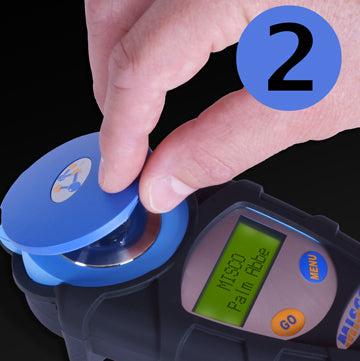

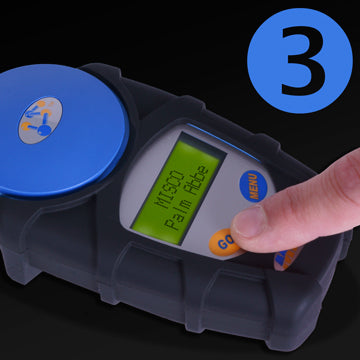

Measure battery acid safer and more precisely. The MISCO Palm Abbe digital refractometer eliminates bringing acid up to your eye – a risk associated with analog/shadow line models. This refractometer has a single scale for sulfuric acid specific gravity. The Palm Abbe refractometer is fast, convenient, and easy to use. Simply place a drop or two of fluid in the stainless steel well and press a button. The custom-designed microprocessor delivers a nearly instantaneous readout. Nonlinear temperature compensation is automatic and ensures that fluids are measured accurately. The large backlit LCD display is easily read, even in dim light, and removes the subjectivity associated with interpreting where a boundary line crosses tiny scale divisions. And, it is so easy to use! The user interface consists of two buttons, one to take readings and the other to step through various menu options.

Calibration is automatic and does not require the use of special calibration solutions or tools. The Palm Abbe refractometer automatically calibrates itself to water and is ready to use in seconds. No more screws to turn and nothing to adjust.

The Palm Abbe is a fourth-generation digital handheld refractometer that puts laboratory precision in the palm of your hand. Not just laboratory precision, but laboratory precision for the price of a traditional analog refractometer. It is exactly the kind of bold, cutting-edge technology you would expect from MISCO, the company that pioneered the digital handheld refractometer.



Optic Material	Sapphire
Detector Elements	1,024
Well/ Sample Area Material	Stainless Steel
Evaporation/ Sample Cover	Yes
Country of Origin	USA
Light Source	Precision LED @ 589.3 nm
Display Type	LCD
Display Characters	24 Characters x 2 Lines
Display Backlight	Yes
Display Language	English
Temperature Control Method	Auto Temp. Compensation
Temperature Control Basis	Urea
Temperature Range	10 to 45 °C (50 to 113 °F)
Power Source	2 AAA Batteries
Battery Life	5000+ Readings
Dimensions	145 x 75 x 37 mm (5.7 x 2.95 x 1.46 in.)
Weight	250 grams (8.8 Oz.)
User Programmable	Factory Reprogrammable, Options/Settings, Select Scale
User Calibration Points	2
Body Color	BLUE
Body Material	Plastic
Water Resistance	IP64 - Splashing Water
Error Codes	Text-Based
Approvals and Certifications	CE







---
