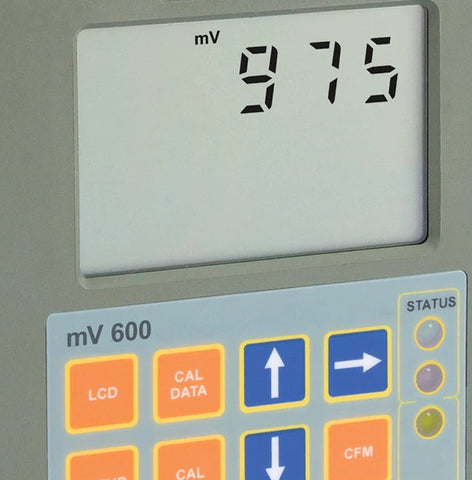

$495 mV600 Panel-mounted ORP Digital Controller with Matching Pin mV600122

NISupply

  • $ 49500
  • Save $ 100


THIS IS A USED UNIT with cosmetic blemishes, but works like a champ!

The mV600 controllers have been engineered with a number of outstanding features to meet all of your process control needs. mV600 offer a multitude of possibilities from ON/OFF or proportional dosage to analog recorder output and alarm. A host of self-testing features and user-friendly functions make mV600 a great value.

  • Accurate, reliable and simple to install.
  • Fully programmable microprocessor memory.
  • Wiring the controllers is simple with extractable terminal module



Fail Safe Alarm System
Specification Name Detail
Sku mV600
ORP Range ±2000 mV
ORP Resolution 1 mV
ORP Accuracy (@20°C/68°F) ±2 mV
Temperature Range -9.9 to 120.0 °C
Temperature Resolution 0.1 °C
Temperature Accuracy (@20°C/68°F) ±0.5 °C
Typical EMC Deviation ±10 mV; ±0.5 °C
Digital Output RS232 bi-directional, optoisolated
Calibration ORP: automatic, 2 point, at 0 and 350 or 1900 mV
Analog Output galvanically isolated: 0-1 mA, 0-20 mA and 4-20 mA, 0-5 Vdc, 1-5 Vdc and 0-10 Vdc
Setpoint Relay 1 or 2 contact outputs SPDT, 5A-250 Vac, 5A-30 Vdc (resistive load). Fuse protected: 5A, 250V FUSE
Hysteresis Band ±2000 mV
Power Supply 230 ±10% VAC or 115 ±10% VAC, 50/60 Hz
Power Consumption 15 VA
Over Current Protection 400 mA 250V FAST FUSE
Max. Oscillation Frequency 4 MHz
Alarm Relay 1 contact output SPDT, 5A-250 Vac, 5A-30 Vdc (resistive load). Fuse protected: 5A, 250V FUSE
Environment 0 to 50°C (32 to 122°F); RH max 95%
Enclosure/ Case Material single case ½ DIN
Dimensions panel cutout: 140 x 140 mm
instrument: 144 x 144 x 170 mm
Weight approximately 1.6 kg. (3.5 lb.)
