ABBE Refractometer 0-95% Brix % 1.000-1.700 nD Refractive Index ATC, 2WAJ

National Industrial Supply

  • $ 38900

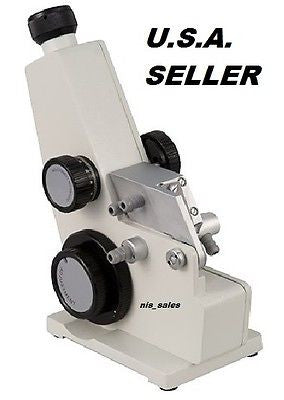

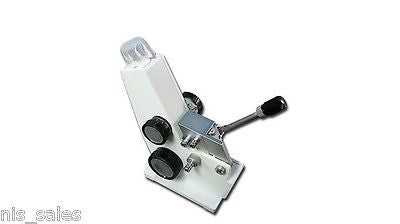

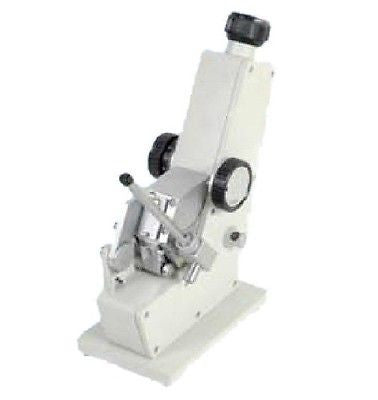

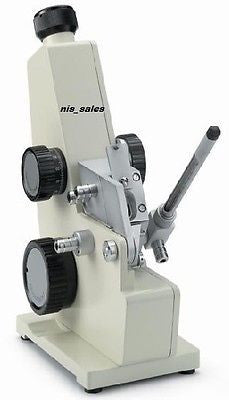

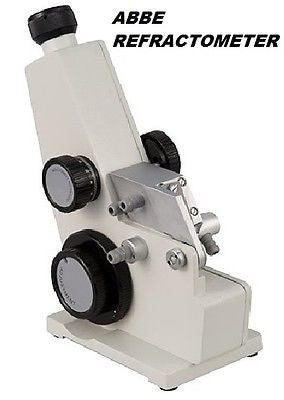

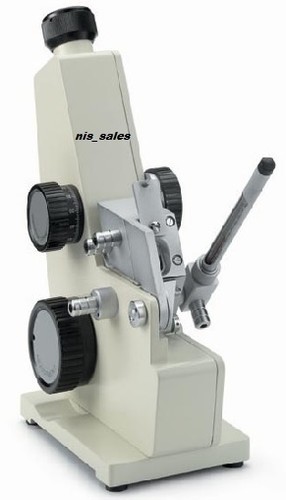

Abbe Refractometer
Model 2WAJ - With Manual Thermometer

ABBE-Refractometer-0-95-Brix-Refractive-Index-ATCABBE-Refractometer-0-95-Brix-1-000-1-700-nD-Refractive-Index-ATC-FREE-S-H

This Abbe refratometer is an excellent, affordable instrument for the refractive index (nD) analysis of liquids, glass, plastics and film.


EASY TO USE
Operation consists of placing a sample on the prism; while looking through the eyepiece, the control knob is turned until the shadowline is centered in the crosshairs. The reading is taken where the vertical line crosses the scale. Calibrates with water.  Uses strong ambient light to run!

INDUSTRIAL FEATURES
  • Oversized, easy to read scale
  • Refractive index (nD) and Brix scales
  • Primary and secondary prisms
  • Color compensator dial
  • Large measurement dial
  • Focusable eyepiece

PRISM TEMPERATURE CONTROL
Featuring 2 circulator nozzles for the primary prism and 2 for the secondary prism, model 2WAJ can be connected to a circulating bath to accurately regulate prism temperture. The prism temperature is displayed on the external glass thermometer. The effective temperature range is 0-70°C

FILM TESTING
Transparent or translucent film samples can be measured with the use of a glass standard (aids in the illumination of the sample), contact liquid (adhered the sample to the glass standard and to the primary prism), and an external sodium light source (sold separately).
Note: The refractive index (nD) value of the sample must be lower than that of the contact liquid and the glass standard. The included bromonaphtalene contact liquid has a refractive index (nD) value of 1.6300. The included glass standard has a refractive index value (nD) of 1.5163.

GLASS AND PLASTIC TESTING
Transparent or translucent glass and plastic samples cam be measured with the use of a contact liquid (adheres the sample to the primary prism), and an external sodium light source (sold separately).
Note: The refractive index (nD) of the sample must be lower that that of the contact liquid. The included bromonaphtalene contact liquid has a refractive index (nD) value of 1.6300.

SPECIFICATIONS
Measuring System Optical refraction critical angle detection
Measuring Range 1.3000-1.7000 nD
0.0-95% Brix
Resolution 0.0005 nD
0..25% Brix
Accuracy ±0.0003 nD
±0.15% Brix
Dispersion (nF-nC) Dial readings w/ conversion charts
Ambient Temperature 5-35°C
Measuring Temperature 0.0-70.0°C
Calibration Liquid/Medium Distilled water
Glass standard, 1.5163 nD
(w/bromonaphtalene contact liquid)
Prism Optical glass
Prism Housing SUS316 stainless steel
Circulator Nozzles 2 for primary prism, 2 for secondary prism
Dimensions (LxWxH) 14 x 9 x 26 cm
Weight 2.3 kg

CAT. NO. DESCRIPTION
2WAJ Abbe refractometer, Model 2WAJ


 ABBE-Refractometer-0-95-Brix-Refractive-Index-ATC

High Quality!


Each item is carefully manufactured and inspected to insure a long life in use. This item comes with a ONE YEAR WARRANTY against defects.

This unit is warrantied for 1 year against manufacturer's defects!
