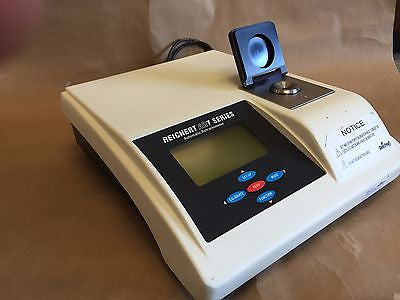

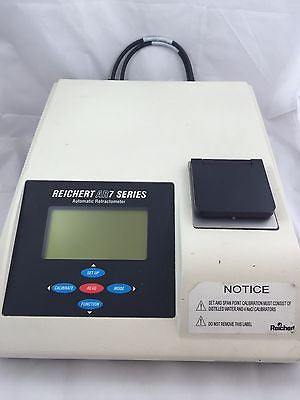

AR700 Automatic Refractometer The Reichert AR700 Automatic Refractometers


  • $ 10,99900

Item Description: AR700 Automatic Digital Refractometer

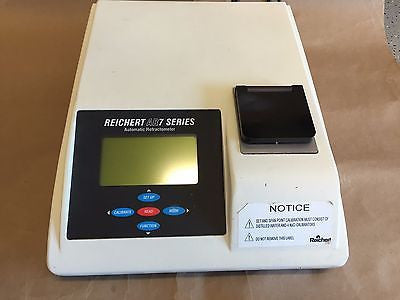

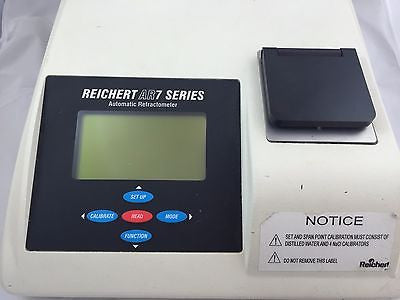

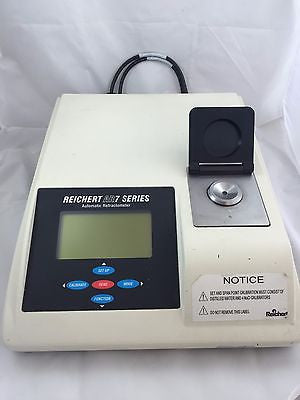

AR700 Automatic Refractometer

The Reichert AR700 Automatic Refractometers are among the most technologically advanced instruments available for measuring Refractive Index, Brix, or equivalent concentration units. These instruments incorporate an advanced Peltier thermal regulation system allowing the user to manually set the desired operating temperature on the easy to use graphic display. Within moments, the instrument will stabilize at the set temperature, eliminating the need for an external water bath circulator. Temperature may be set from 10 to 100 Degrees Celsius.


Automatic Temperature Equilibration Detection allows the user to load a hot or cold sample and immediately press the read button. Sample temperature is monitored until an equilibrium is reached with the instrument, at which time the reading will be taken. This ensures the highest level of reading accuracy without the need for a technician to monitor temperature or set a delay timer.


Advanced optics (including a sapphire prism for a virtually indestructible sample interface, as well as a 3600 cell sensor) provide the incredible accuracy of +/- 0.00001 Refractive Index and +/- 0.01 Brix accuracy. This is achieved across the entire reading range of 1.33000 to 1.60000 Refractive Index and the full Brix range.


While these features are ideal for the Research and Development department, these instruments are also well suited for the production line. With an incredibly simple to use, operator friendly software system and graphic LCD display, anyone can accurately and confidently operate an AR700 Automatic Refractometer. Tested extensively throughout the food and beverage, chemical, and pharmaceutical markets.


Key Features

Built-in Peltier Temperature Control (User Definable, 10 to 100 Degrees Celsius) - Reduces operating cost by eliminating the need for an external water bath circulator. Improves the accuracy and ease of temperature control. Reduces the amount of benchspace required for operation.


Fully Automatic Readings Including Automatic Temperature Equilibration Detection - Reduced operator error. No more shadowline to interpret and no more countdown timers to monitor. Just apply the sample and press READ, the instrument monitors the sample to ensure stability, then takes a fully automatic reading. Can read all sample type, including transparent, translucent, and opaque liquids.

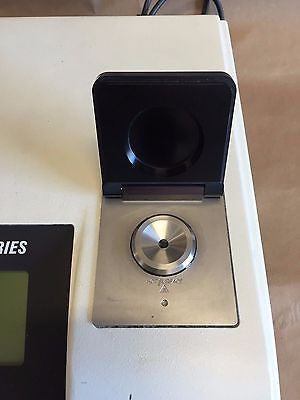

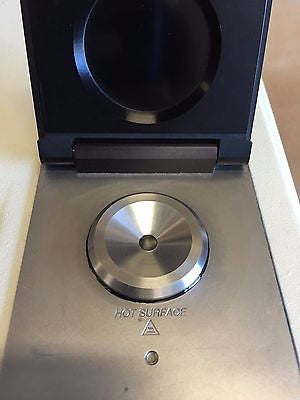

Sapphire Prism and Stainless Steel Sample Well - Reduced maintenance costs. The sample measurement surface and sample well are virtually indestructible.


1.33000 to 1.60000 Refractive Index Range (Full Brix Range per ICUMSA) - Wider reading range ensures that virtually all samples may be analysed on one


Custom Scale Capability (Storage of up to 14 Unique Scales) - Users can program these units with correlation formulas converting refractive index and temperature into product concentration. Hundreds of scales are available, or users can create their own for their unique products. Readability and measurement unit names are user definable as well.

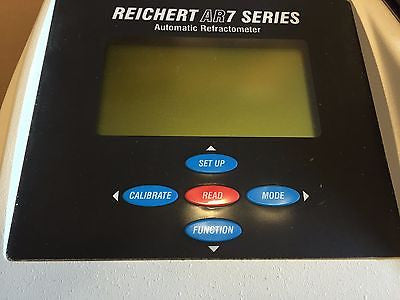

Five Button Operation with Graphic Display and Simple, User Friendly Software - Extreme simplicity of use for anyone from swing shift production line operators to laboratory technicians and research scientists, while offering flexibility in supervisor controlled sample analysis protocols.


Universal AC Power Transformer - Operates from any power source from 100 to 220 Volts and 50/60 Hz.



-AR700 with Precision to 0.01 Brix or 0.00001 Refractive Index


Technical Specifications:

Operation Automatic, Reflected Light Refractometer
Catalog Number 13107000 (110 to 220v with US, EU and UK power cords)
Sample Types Transparent, translucent, and opaque liquids
Reading Range 1.33000 to 1.60000 Refractive Index and Brix range of 0.00 to 95.00%
Precision 0.00001 Refractive Index, 0.01% Brix
Illumination High intensity, long life LED's, 589 nm
Calibration Set Point or Set Point/Span user- definable
Temperature Controlled Method Built-In Peltier system, (No water bath circulator needed)
Temperature Control Range 10° to 100° Celsius
Temperature Precision 0.01° Celsius
Prism Assembly Sapphire prism mechanically sealed with Teflon gasket to 416-grade stainless steel sample well
Display Graphic LCD display, 4.3"W x 2.4"H (11 x 6cm)
User Interface Simple, effective 5-button operation

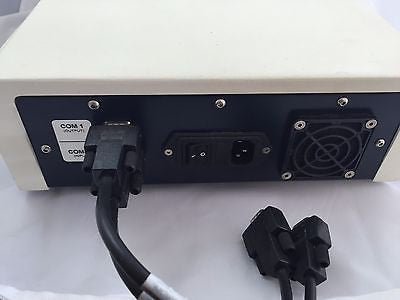

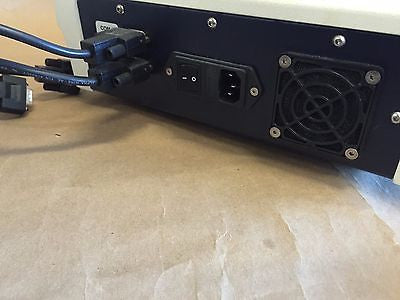

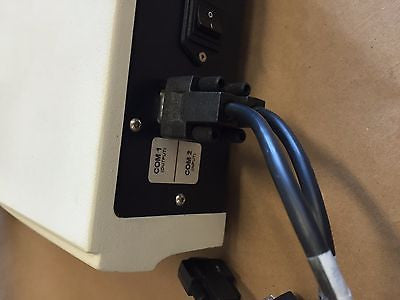

I/O 2 RS-232-C serial ports
Warranty 2 years
Software Features Calibration history record, programmable with up to 14 custom scales password protected set-up, automatic sample equilibration detection, restore to factory option.


Key Features

  • Sapphire prism for incredible durability
  • Peltier temperature control from 10° to 100°C with automatic temperature equilibration detection to ensure accurate readings
  • No water bath circulators are ever required
  • Refractive Index range of 1.3300 to 1.6000
  • Brix range of 0.0 to 95.0%
  • User-definable calibration points throughout the reading range ensure accuracy at every point
  • Accommodates sample types that are transparent, translucent or opaque
  • Simple calibration, NIST certified oils included
  • Calibration history log
  • Accessories enhance repeatability, accuracy and reliability for special applications that call for them

Reading Precision

AR700 has precision to 0.01% Brix or 0.00001 Refractive Index
