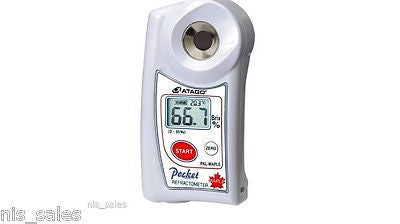

Atago PAL-MAPLE Alpha ABBE 0-85% Brix Refractometer


  • $ 49999

Item Description: Atago  PAL-MAPLE (Alpha) Digital 0-85%Brix Refractometer

Perfect for ALL Stages of Making Maple Syrup!

Released on special model perfect for the Maple Industry, the PAL-MAPLE (Alpha) has a wide brix range (0-85%) offering at a very reasonable price. Designed with a water resistant feature, the PAL-MAPLE (Alpha) can be washed under running water. PAL-MAPLE is equipped with the same great features as the other PAL units.


Copyright in registered design.
 Compact and easy to carry Calibration with water Battery operated Digital display Automatic Temperature Compensation High temperature samples External Light Interference
Model PAL-MAPLE Cat.No. 3849
Measurement Range Brix 0.0 to 85.0 %
Temperature 9.0'C-100.0'C
Resolution Brix 0.1 %
Temperature 0.1%'C
Measurement Accuracy Brix ±0.2 %
Temperature +/-1'C
Ambient Temperature 10 to 40°C
Measurement Temperature 10 to 100°C           (Automatic Temperature Compensation) Sample Volume 0.3 ml
Power supply 2 × AAA Batteries
MeasurementTime 3 seconds Dimensions & weight 55(W)×31(D)×109(H)mm, 100g (Main Unit only)
Optional PAL-CASE : RE-39409
STRAP : RE-39410
10% Sucrose Solution (±0.03%) : RE-110010
20% Sucrose Solution (±0.03%) : RE-110020
30% Sucrose Solution (±0.03%) : RE-110030
40% Sucrose Solution (±0.04%) : RE-110040
50% Sucrose Solution (±0.05%) : RE-110050
60% Sucrose Solution (±0.05%) : RE-110060
* Calibration Certificate : Contact an ATAGO representative for details.
International Protection class IP65 Dust-tight and Protected against water jets. USA Suggested
List Price


Great for...

Metalworking fluids, Chemicals, Fruits, Vegetables, Grasses, Soda Fountains, Lobster blood, Jam, Jelly, Ketchup, Marmalade, Maple Syrup, Sauces, Fruit Juices, Fruit Juice Concentrate, Smoothies, etc...


Very Powerful!  Very Affordable!
