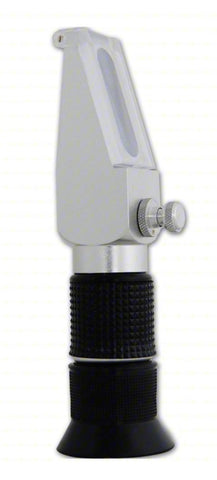

BOSS Refrigeration Oil Refractometer

Professional Refractometer for Refrigeration Oil Conversion & Residual Oil Testing

The BOSS Refrigeration Oil Refractometer is a handheld optical instrument designed to help HVAC/R technicians measure the refractive index of refrigeration lubricants and monitor residual oil during refrigeration system oil conversions.

When converting a system from one lubricant type to another, determining how much of the original lubricant remains can be an important part of the conversion process. The BOSS Refrigeration Oil Refractometer provides a quick, practical way to measure refractive index from a small oil sample and monitor changes in the oil mixture as the conversion progresses.

Designed for field use, the instrument requires no batteries and features automatic temperature compensation for convenient testing under normal service conditions.

Applications

The BOSS Refrigeration Oil Refractometer can be used to evaluate refrigeration lubricants during applications such as:

• Mineral oil to POE conversions
• Alkylbenzene to POE conversions
• Mineral oil to alkylbenzene conversions
• Residual lubricant testing following oil changes
• Refrigeration compressor oil analysis
• HVAC/R retrofit and service procedures
• Refractive-index testing of compatible refrigeration oils and lubricants

Why Use a Refractometer?

Refractive index provides a measurable property that can be used to distinguish and monitor mixtures of refrigeration lubricants.

During an oil conversion, the technician can establish the refractive index of the new lubricant and the lubricant being replaced. Subsequent system samples can then be measured and compared with those reference values to monitor the progress of the conversion.

This provides a quantitative measurement rather than relying solely on visual inspection or assumptions about how much of the original oil remains.

A Practical Tool for Oil Conversion

When changing a refrigeration system from one lubricant to another, removing as much of the original lubricant as practical can be necessary to meet the requirements of the compressor, lubricant and refrigerant manufacturer. The BOSS Refrigeration Oil Refractometer allows technicians to monitor the refractive index of system oil samples throughout the conversion process.

By establishing reference readings for the original and replacement oils, technicians can use subsequent samples to monitor the changing composition of the oil mixture and determine when additional oil changes may be warranted.

Key Features

• 1.435–1.520 refractive-index range
• 0.001 RI resolution
• Automatic temperature compensation
• Handheld optical design
• Simple visual scale
• Manual operation — no batteries required
• Small sample requirement
• Field calibration capability
• Designed for refrigeration oil applications
• Protective carrying case
• Compact design for service technicians

How It Works

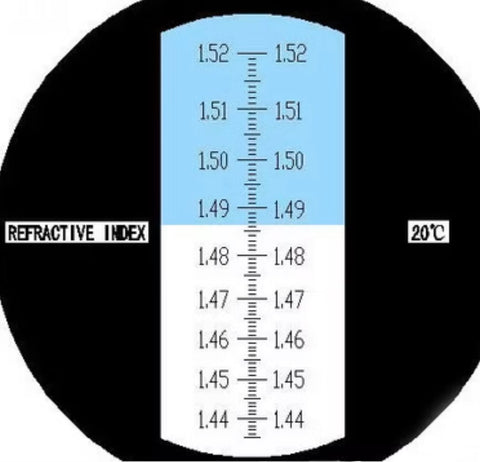

A small sample of refrigeration oil is placed on the refractometer prism. The instrument uses the optical properties of the sample to produce a visible boundary line on the refractive-index scale.

For an oil-conversion procedure, the technician can first measure a sample of the new, target lubricant and record its refractive index. A sample of the existing lubricant can then be measured before the conversion begins. Subsequent system samples can be compared with these reference readings to monitor the changing oil mixture.

For best results, samples should be representative of the system and tested under consistent conditions. The refractometer should be calibrated before use and cleaned after each measurement.

Basic Testing Procedure

1. Calibrate the refractometer using an appropriate calibration standard.
2. Place a small amount of the oil sample on the prism.
3. Close the daylight plate over the prism.
4. Allow the sample to reach a consistent temperature.
5. Hold the refractometer toward a suitable light source.
6. Adjust the focus until the scale and boundary line are clearly visible.

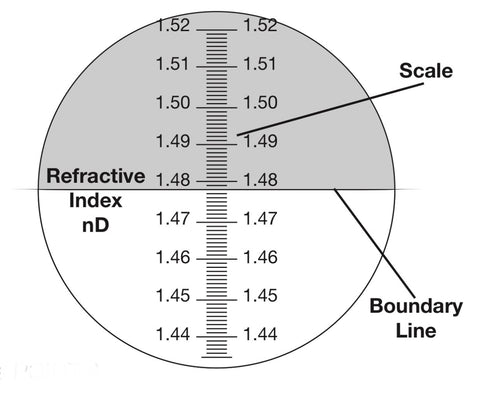

7. Read the refractive index where the boundary line intersects the scale.
8. Record the result.
9. Clean the prism and daylight plate before testing the next sample.

For refrigeration oil conversions, establish reference readings for both the new target oil and the lubricant being replaced before beginning the conversion procedure.

Important

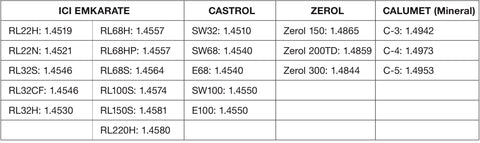

Refractive index varies between lubricant formulations. Do not assume that all POE, PAG, alkylbenzene, or mineral oils have the same refractive index.

For an oil-conversion procedure, use the actual lubricant being installed and the actual lubricant being removed whenever possible. Follow the compressor, lubricant, and refrigerant manufacturer’s requirements for allowable residual oil levels and conversion procedures.

The BOSS Refrigeration Oil Refractometer is a measurement instrument. It does not by itself determine whether a refrigeration system is suitable for conversion or establish the maximum allowable residual lubricant level.

Specifications

Included

• BOSS Refrigeration Oil Refractometer
• Protective carrying case
• Calibration accessory
• Instruction documentation

Built for the Field

The BOSS Refrigeration Oil Refractometer is designed for technicians who need a practical way to measure refrigeration-oil refractive index without carrying a laboratory instrument into the field.

Its compact handheld design, simple optical scale, automatic temperature compensation and battery-free operation make it suitable for service vehicles, compressor work, retrofit projects and field troubleshooting.

BOSS Refrigeration Oil Refractometer
Professional measurement for refrigeration oil conversion.
