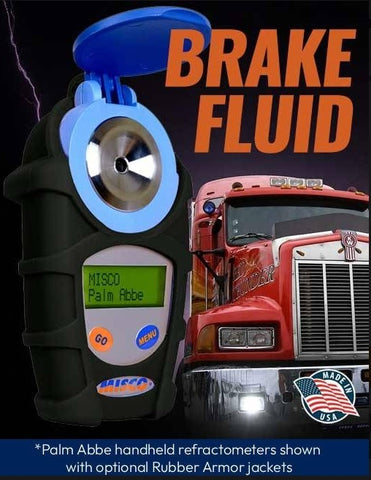

MISCO PA202X-061-062 Digital Brake Fluid Refractometer — DOT 3 Water Content & Boiling Point °F

Brand: MISCO | Model: PA202X-061-062 | SKU: PA202X-061-062 | Made in the USA

Product Description

Professional Digital Brake Fluid Testing — Measure Water Content and Estimate Boiling Point in Seconds

The MISCO PA202X-061-062 Palm Abbe Digital Brake Fluid Refractometer is a precision handheld instrument designed to help automotive technicians, repair shops, fleet maintenance departments, dealerships, and brake service professionals evaluate the condition of DOT 3 brake fluid.

Using advanced digital refractometry, this instrument measures brake fluid water content and estimates its corresponding boiling point in degrees Fahrenheit. With just one or two drops of brake fluid, technicians can obtain a digital reading in seconds, helping them make more informed brake fluid inspection and maintenance decisions.

Unlike conventional visual inspection or basic moisture-indicator methods, the MISCO Palm Abbe provides numerical readings on two dedicated measurement scales. Technicians can evaluate water content from 0 to 6% and view an estimated boiling point from 244°F to 485°F without performing a separate laboratory test.

Designed for convenient field use, this compact, battery-powered digital refractometer combines simple operation with the repeatability and measurement detail needed in professional automotive service environments.

Why choose the MISCO PA202X-061-062?

• Measures DOT 3 brake fluid water content from 0 to 6%.

• Estimates brake fluid boiling point from 244°F to 485°F.

• Provides two dedicated, pre-programmed measurement scales.

• Requires only one or two drops of brake fluid per measurement.

• Displays results digitally in seconds.

• Uses automatic temperature correction.

• Features a durable, water-resistant IP65-rated enclosure.

• Manufactured in the USA by MISCO, a specialist in digital refractometry.

Whether you're performing routine brake inspections, maintaining a commercial vehicle fleet, servicing customer vehicles, or establishing a documented maintenance procedure, the MISCO Palm Abbe offers a convenient way to assess an important indicator of brake fluid condition.

Why measuring brake fluid water content matters

Brake fluid is hygroscopic, meaning it absorbs moisture over time. Moisture can enter through exposure to the atmosphere and through normal conditions within a vehicle's braking system.

As water content increases, the boiling point of brake fluid generally decreases. Under demanding braking conditions, excessive moisture can increase the risk of brake fluid boiling and vapor formation, potentially reducing braking effectiveness.

Water contamination can also contribute to corrosion of internal braking components. For vehicles subjected to heavy braking, towing, mountainous driving, or other demanding operating conditions, monitoring brake fluid condition is an important part of preventive maintenance.

The MISCO PA202X-061-062 helps technicians assess two related measurements:

1. Brake fluid water content (% H₂O)

The first scale measures water content from 0 to 6%, with a displayed resolution of 0.1%. This helps technicians identify changes in fluid condition and compare measurements against applicable service recommendations.

2. Estimated brake fluid boiling point (°F)

The second scale provides an estimated boiling point from 244°F to 485°F. This offers an additional perspective on the potential thermal performance of the tested DOT 3 brake fluid.

Using both scales can help make brake fluid inspection more informative than relying on fluid appearance or age alone.

Important: The displayed boiling point is an estimate derived from the instrument's programmed measurement scale, not a direct laboratory determination of the fluid's actual boiling point. Follow the vehicle manufacturer's service requirements and appropriate testing procedures when making maintenance decisions.

Fast, simple testing for professional automotive service

The MISCO Palm Abbe is designed to make brake fluid testing practical in a busy workshop or fleet maintenance operation.

1. Collect a small sample of brake fluid from an appropriate service sampling point.

2. Place one or two drops onto the instrument's stainless-steel sample area.

3. Close the sample cover and allow the reading to stabilize as directed in the operating instructions.

4. Press the measurement button.

5. Read the water content or estimated boiling point on the digital display.

6. Clean the sample area thoroughly after testing, following the manufacturer's instructions.

The instrument's two programmed scales let technicians select the measurement they need without manually interpreting an analog scale.

Practical benefit: Small sample requirements, fast readings, and straightforward digital results make this instrument useful for routine inspection workflows where technicians need a consistent method for assessing brake fluid condition.

Technical Specifications

Specifications are based on published MISCO information for the PA202X-061-062 configuration. Resolution describes display increments; precision describes stated measurement performance. These terms are not interchangeable.

Recommended applications

The MISCO PA202X-061-062 is particularly well suited to organizations that regularly inspect and service vehicles using DOT 3 brake fluid.

Automotive repair shops

Check brake fluid condition during scheduled maintenance, brake service, and vehicle inspections. Use numerical readings to support recommendations for further testing or fluid replacement.

Fleet maintenance departments

Incorporate brake fluid testing into preventive maintenance programs for commercial vehicles, service fleets, and other vehicles with regular inspection schedules.

Dealerships and service centers

Add an objective measurement to brake fluid condition assessments and help explain maintenance recommendations to vehicle owners.

Technical training and maintenance programs

Demonstrate the relationship between moisture contamination and estimated boiling point as part of automotive service training and maintenance documentation.

Why choose digital refractometry over basic brake fluid testers?

Basic brake fluid testers may use electrical conductivity or other indirect methods to evaluate fluid condition. The results and interpretation depend on the tester's design and the properties it measures.

The MISCO Palm Abbe takes a different approach, using optical refractometry with scales specifically programmed for DOT 3 brake fluid.

Its principal advantages include:

• Numerical water content readings: View the measured result on a dedicated 0–6% scale.

• Estimated boiling point: Obtain a second, temperature-based indicator of fluid condition.

• Fine display resolution: Water content is displayed in 0.1% increments, while boiling point is displayed in 1°F increments.

• Small sample size: Test with only a few drops rather than filling a large sample chamber.

• Portable operation: Battery power and a compact enclosure support use in the workshop or field.

For professional users, the important distinction is not simply whether a tester produces a result, but whether the measurement is appropriate for the fluid, understandable, and useful within an established maintenance procedure.

The MISCO model is specifically programmed for DOT 3 brake fluid. Do not assume that its readings are valid for DOT 4, DOT 4 Super, DOT 3 high-temperature formulations, or other brake fluids. Select the appropriate instrument configuration for the fluid being tested.

Understanding the readings

MISCO publishes general guidance for interpreting brake fluid water content and estimated boiling point. Its guidance identifies less than 2% water as an acceptable target for certain demanding applications, while water content above 3% generally indicates that fluid replacement should be considered.

The following table summarizes general DOT 3 guidance from MISCO; always defer to the vehicle manufacturer's requirements and the applicable service procedure.

These ranges are general guidance, not a universal vehicle-specific pass/fail standard. The instrument's published measurement precision should also be considered when interpreting results near a decision threshold.

For additional information, see MISCO's guide: When to Change Your Brake Fluid.

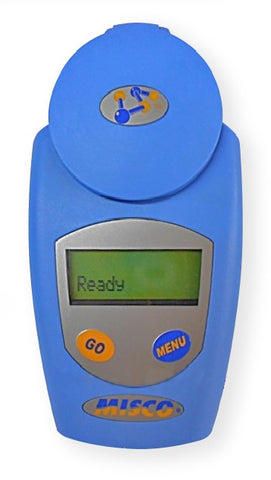

MISCO Refractometer

+1

Frequently Asked Questions

What does the MISCO PA202X-061-062 measure?

It provides two programmed measurements for DOT 3 brake fluid: water content as a percentage and estimated boiling point in degrees Fahrenheit.

How much brake fluid is required?

Typically, only one or two drops are needed for a reading.

What is the water content measurement range?

The water content scale ranges from 0 to 6%, with a resolution of 0.1% and stated precision of ±0.5 percentage points.

What is the boiling point range?

The Fahrenheit scale covers 244°F to 485°F, with 1°F display resolution and stated precision of ±10°F.

Can this instrument test DOT 4 brake fluid?

This configuration is programmed for DOT 3 brake fluid. For DOT 4 or other formulations, select a MISCO refractometer programmed for the appropriate fluid and measurement scales.

Does the instrument directly measure the boiling point?

No. It estimates boiling point using its programmed optical measurement scale. A direct boiling point determination requires an appropriate boiling point test method.

Does it require an electrical outlet?

No. It operates on two AAA batteries and is designed for portable use.

Is it suitable for professional automotive workshops?

Yes. Its compact design, rapid measurements, small sample requirement, and digital display make it suitable for automotive service, fleet maintenance, and related professional applications.

Why buy from NI Supply?

National Industrial Supply (NI Supply) specializes in refractometers and measurement instruments for professional, industrial, laboratory, and specialty applications.

We offer a selection of new and refurbished refractometers, including instruments for applications that can be difficult to source through general industrial suppliers. Our goal is to help customers identify the right instrument and measurement scales for their specific needs.

When you purchase the MISCO PA202X-061-062 from NI Supply, you can shop with a supplier focused on refractometry rather than a general automotive parts catalog.

Looking for another configuration? If you need Celsius boiling point readings, DOT 4 scales, or a customized combination of measurement scales, contact NI Supply before ordering. MISCO offers additional programmed configurations, and selecting the correct model is important for meaningful measurements.
