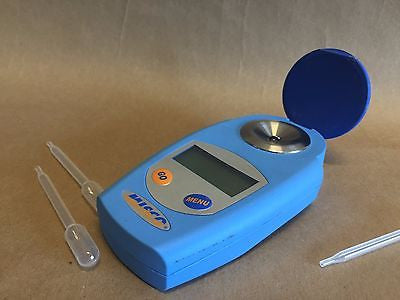

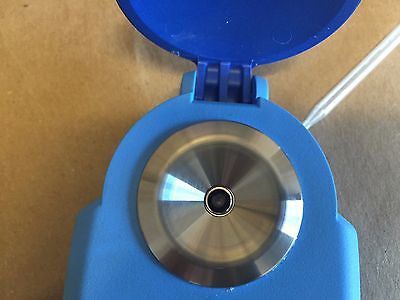

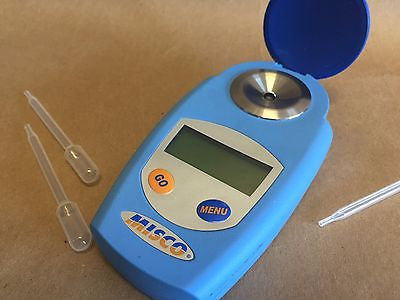

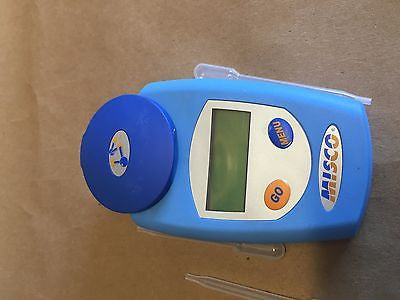

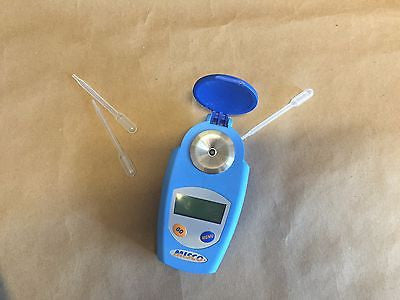

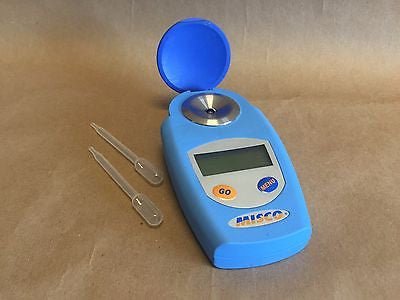

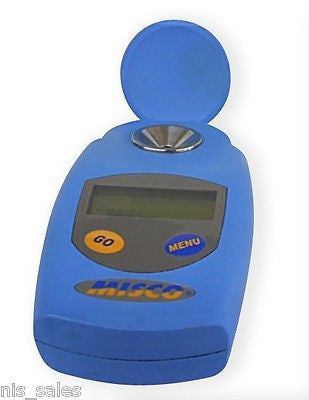

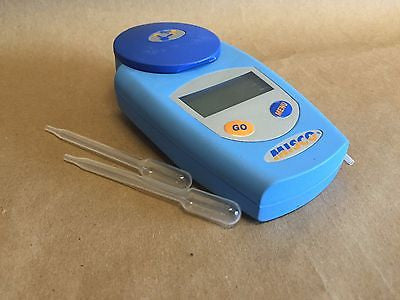

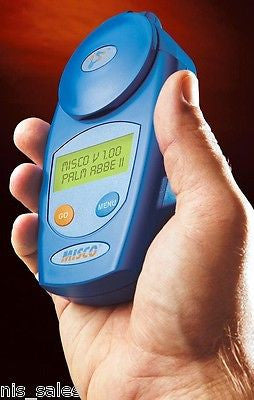

MISCO VINO5 Palm Abbe Digital Refractometer, 5 Scales


  • $ 58500

Click Here. Double your traffic. Get Vendio Gallery - Now FREE!

  Item Description: MISCO VINO5 Palm Abbe Digital Handheld Refractometer, Wine Scales, Brix, Probable Alcohol, Actual Sugar, Actual Alcohol, Specific Gravity






One BRAND NEW  MISCO VINO5 Palm Abbe.  Need to measure Brix, Probable Alcohol Content, Actual Sugar Content (grams/Liter) of grape juice and grape must? The MISCO VINO6 Digital Wine Refractometer was developed specifically for the international wine industry and professional viticulturists. Post-distillation, it will measure Specific Gravity and the actual Alcohol by Volume of a particular finished wine and therefore is ideal for vineyards and wineries where quality and the highest precision are demanded.

The actual Alcohol by Volume of a particular finished wine may also be established following a distillation method recognized by international bodies. After distilling a small volume of wine, the ethanol distillate is measured on the Palm Abbe Digital Wine/Alcohol Refractometer and the actual alcoholic strength (percent by volume) or specific gravity is displayed. (NOTE: It is impossible to measure the alcohol content of wine by directly measuring finished wine on a refractometer. The wine must first be distilled and then the distillate is tested on the alcohol scale.). - each unit comes with a 1 Year Warranty (which is better than the other digital Brix Refractometers)!

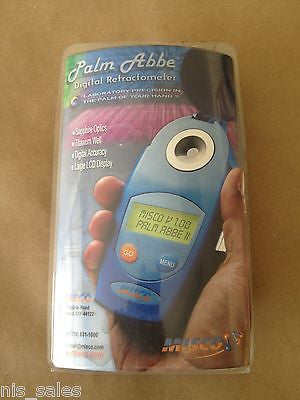

Included are: MISCO Palm Abbe Refractometer, Protective Rubber Armor Jacket, Instruction Manual

This is the Refractometer of Professionals!

The VINO5 Scales:

Scale 1 Fluid: Brix; Unit of Measure: Brix; Range: 0 to 85; Resolution: 0.1; Precision: +/-0.1

Scale 2 Fluid: Wine; Unit of Measure: Potential Alcohol; Range: 0 to 18; Resolution: 0.1; Precision: +/-0.1

Scale 3 Fluid: Wine (Must Sugar Content); Unit of Measure: g/L; Range: 0 to 308; Resolution: 1; Precision: +/-1

Scale 4 Fluid: Wine (Alcohol by Distillation); Unit of Measure: OIV Method (%v/v); Range: 0 to 30; Resolution: 0.1; Precision: +/-0.25

Scale 5 Fluid: Wine (Alcohol by Distillation); Unit of Measure: Specific Gravity (D20/20); Range: 1.0000 to 0.9640; Resolution: 0.0001; Precision: +/-0.0003

The unit runs off (2) AAA batteries on a LARGE PRINT digital LCD display.  The PA201 has earned the CE seal of approval for engineering excellence!

VINO5 Specs:
Temperature Range 0 to 50 °C (32 to 122 °F)
Power Source 2 AAA Batteries
Battery Life 5000+ Readings
Dimensions 145 x 75 x 37 mm (5.7 x 2.95 x 1.46 in.)
Weight 250 grams (8.8 Oz.)
